Support pads and road plates

made of plastic, steel and wood

Webshop

Order and enquiry form

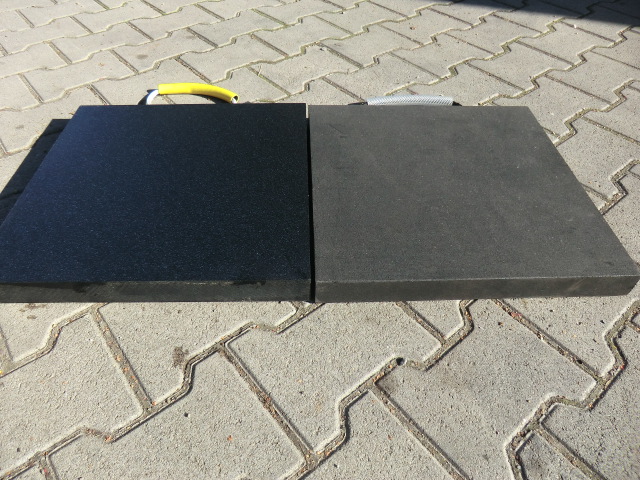

Please find below our online order form. Simply enter the required number in the relevant box. Please make a note in the comments field if you wish to purchase your plate in ANTIRU. Instead of using a coating, we have increased the frictional values on our plastic plates in ANTIRU using a completely new plastic mixture, and this also increases the stability without negatively influencing the outstanding bending and load-bearing properties.

You can download the pricelist here



Dimensions Supporting power Crane size Weight Price*
(in €)
ANTIRU*
(in €)
ArtNo. Number

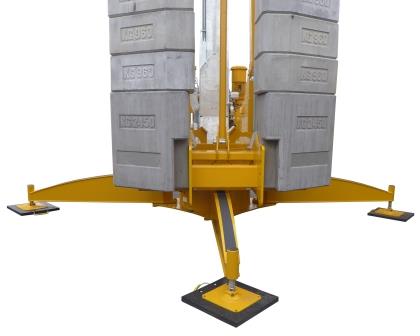

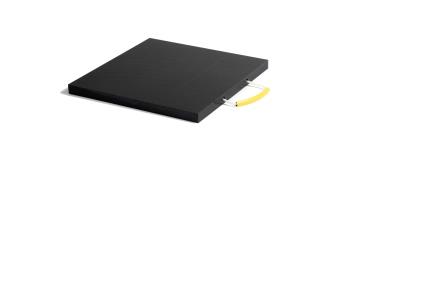

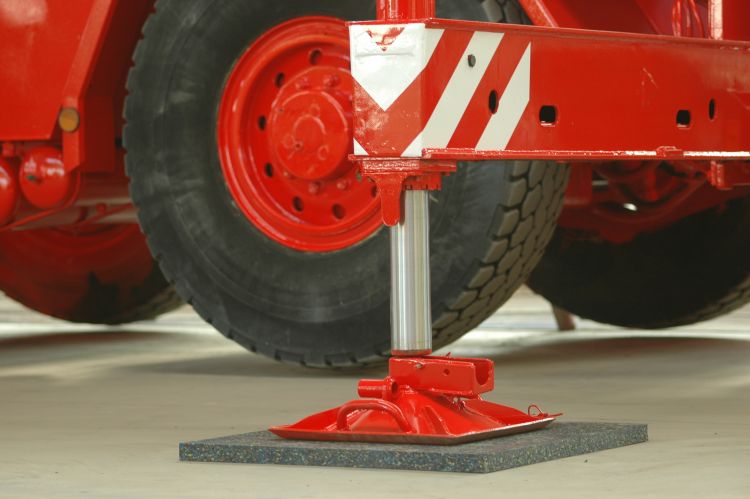

Support pads square-cut
30 x 30 x 3 2 t 2,5 kg 16 +2 AP30303
40 x 40 x 3 8 t 13 t 4,5 kg 27 +3 AP40403
40 x 40 x 4 10 t 15 t 6,5 kg 36 +3 AP40404
60 x 30 x 4 10 t 16 t 7 kg 43 +6 AP60304
40 x 40 x 5 12 t 20 t 7,5 kg 45 +3 AP40405
60 x 30 x 6 12 t 20 t 10 kg 63 +6 AP60306
40 x 40 x 6 15 t 25 t 9 kg 54 +3 AP40406
50 x 50 x 4 15 t 30 t 10,0 kg 50 +5 AP50504
50 x 50 x 5 17 t 28 t 12 kg 63 +5 AP50505
50 x 50 x 6 20 t 35 t 15 kg 77 +5 AP50506
60 x 60 x 4 20 t 50 t 14,5 kg 72 +6 AP60604
60 x 60 x 5 23 t 45 t 17 kg 92 +6 AP60605
60 x 60 x 6 25 t 50 t 21,5 kg 98 +6 AP60606
80 x 80 x 4 25 t 70 t 25,5 kg 130 +11 AP80804
80 x 80 x 5 30 t 60 t 31 kg 160 +11 AP80805
90 x 90 x 4 30 t 80 t 32,5 kg 195 +14 AP90904
80 x 80 x 6 30 t 80 t 38,5 kg 195 +11 AP80806
90 x 90 x 6 40 t 90 t 48,5 kg 280 +14 AP90906
100 x 100 x 5 45 t 95 t 49 kg 243 +17 AP1001005
100 x 100 x 6 50 t 100 t 60,0 kg 286 +17 AP1001006
100 x 100 x 7 60 t 60 t 70,0 kg 340 +17 AP1001007
100 x 100 x 8 70 t 120 t 80,0 kg 395 +17 AP1001008
120 x 120 x 6 80 t 130 t 84 kg 445 Anfrage AP1201206
120 x 120 x 8 90 t 150 t 113 kg 590 on request AP1201208

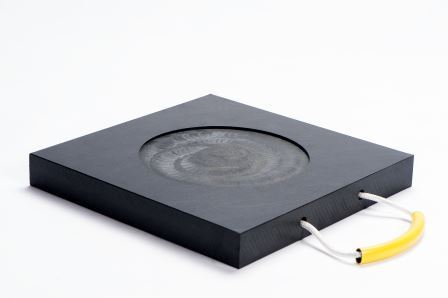

slip prevention edge cutting programming once only 13,50 APAKP1
per piece 6,30 APAKP2

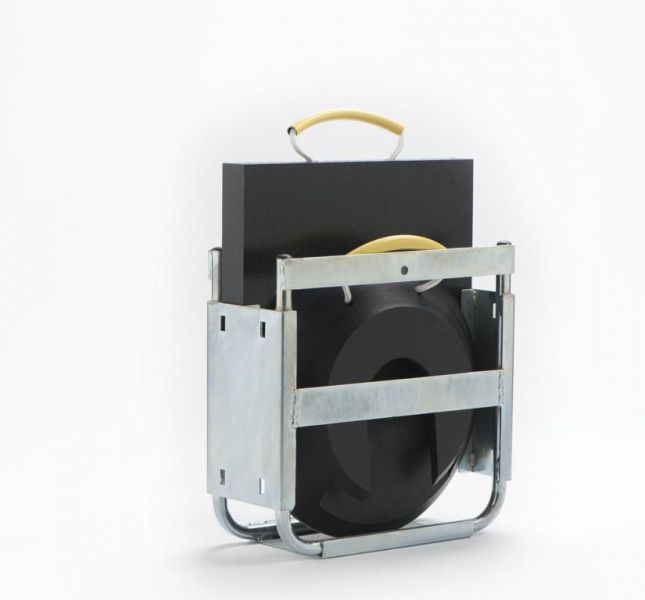

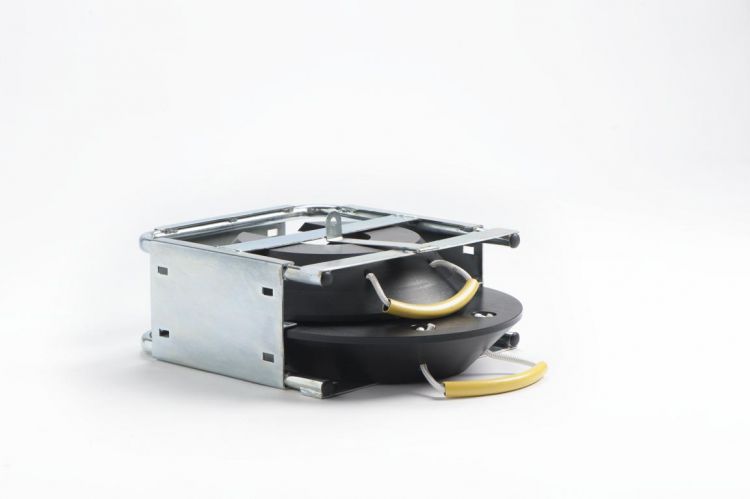

Boxes für storing & transport of pads
30 x 30 for 2 pads 6 kg on request APB30
40 x 40 for 2 pads 7 kg 63 APB40
50 x 50 for 2 pads 10 kg 68 APB50
60 x 60 for 2 pads 12 kg 70 APB60
80 x 80 for 2 pads 18 kg on request APB80

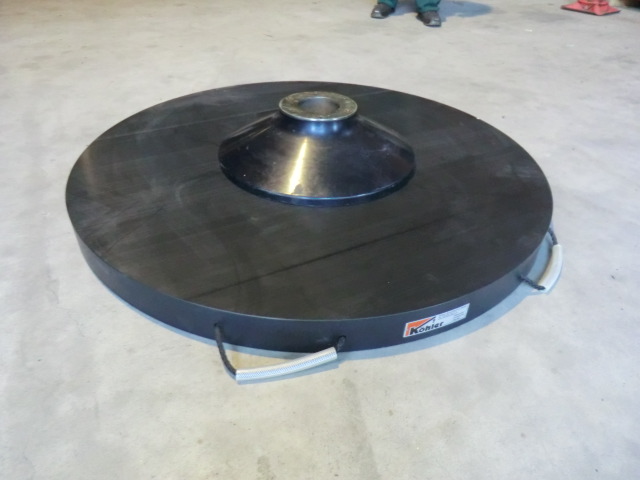

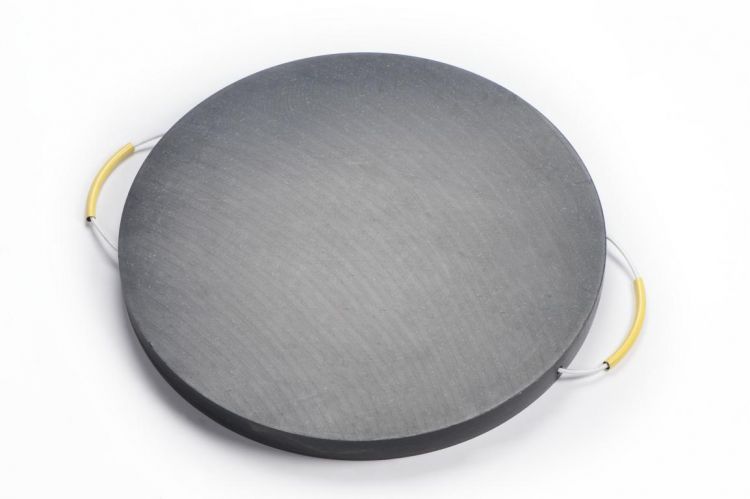

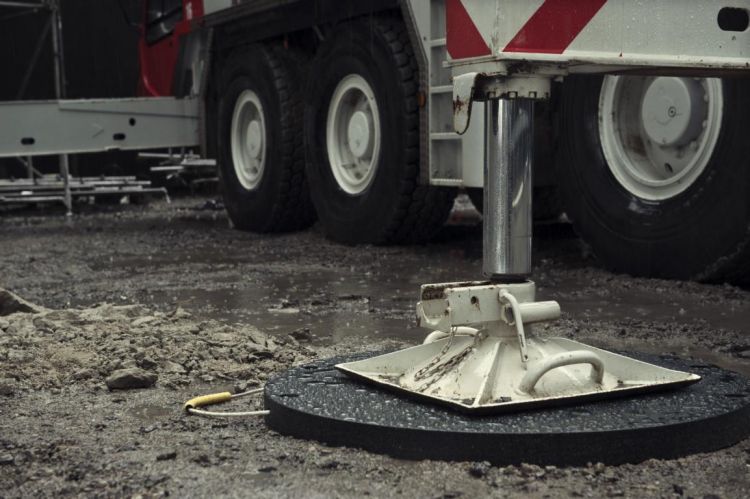

Support pads round
80 x 6 30 t 60 t 29 kg 206 +9 APR806
90 x 6 35 t 70 t 37 kg 281 +11 APR906
100 x 5 35 t 70 t 37 kg 284 +14 APR1005
100 x 6 40 t 75 t 46 kg 320 +14 APR1006
100 x 8 70 t 100 t 60,0 kg 431 +14 APR1008
120 x 6 60 t 100 t 65,0 kg 451 +19 APR1206
120 x 8 80 t 140 t 85,0 kg 615 +19 APR1208

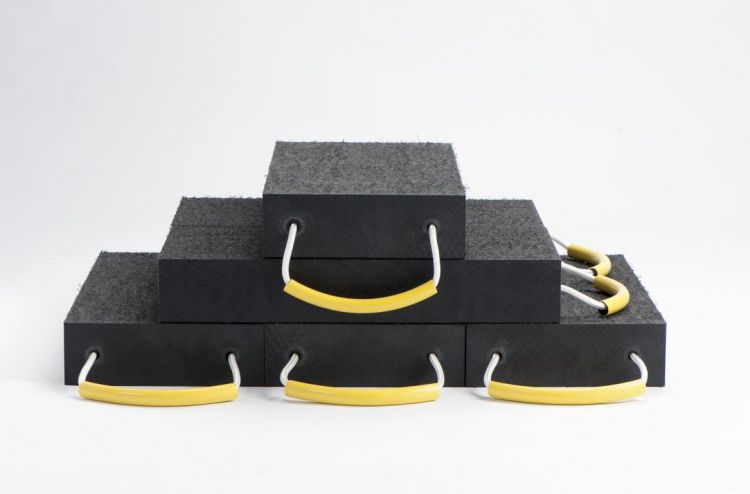

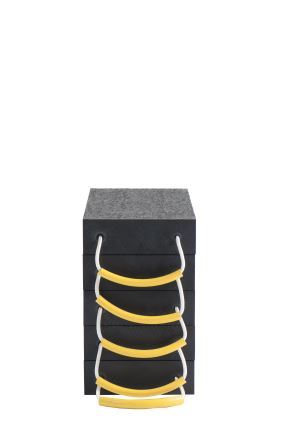

Stack pads
50 x 25 x 5 6 kg 43 incl. SP50256
50 x 25 x 8 10 kg 89 incl. SP50258
50 x 25 x 10 12 kg 85 incl. SP502510
100 x 25 x 5 12 kg 84 incl. SP100255
100 x 25 x 8 19 kg 137 incl. SP100258
100 x 25 x10 24 kg 169 incl. SP1002510
120 x 33 x 8 30 kg 212 incl. SP120338
Timber beam (Bongossi)
100 x 10 x 10 n.a. n.a. n.a. 25 n.a. AB1001010

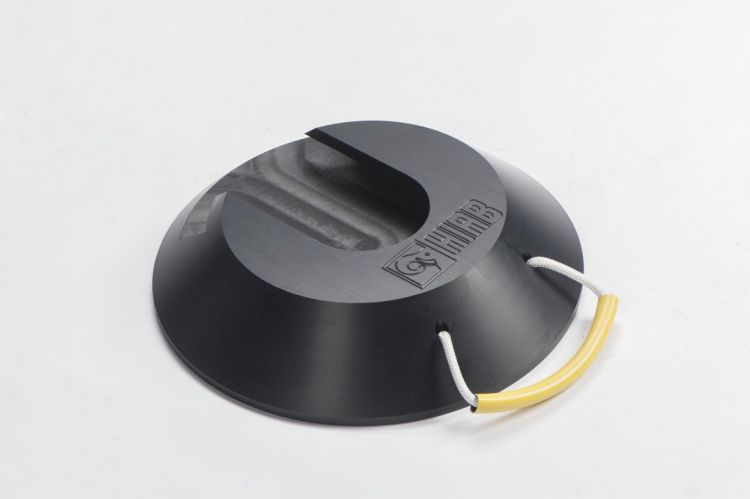

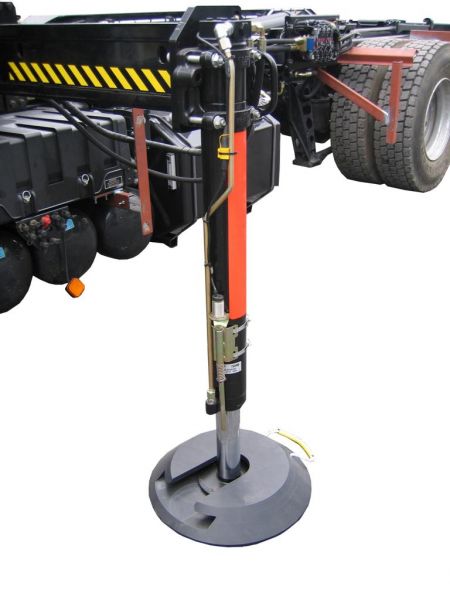

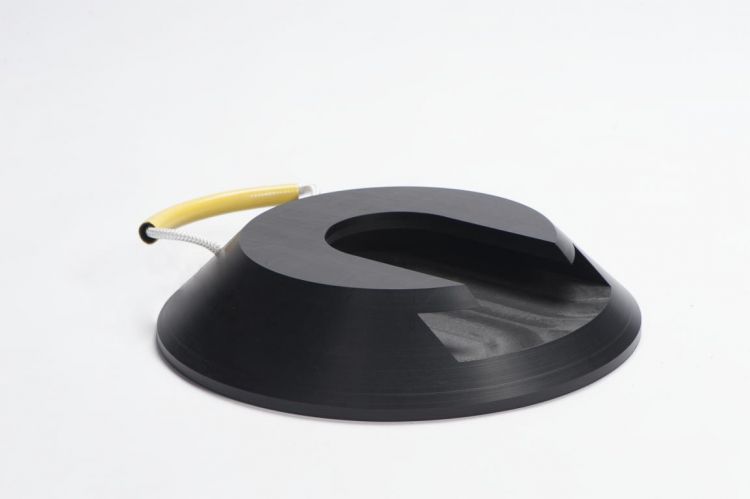

Outrigger shoes
40 x 8 10 t 5 kg 116 AS408
50 x 8 15 t 9 kg 167 AS508
60 x 8 20 t 15 kg 232 AS608

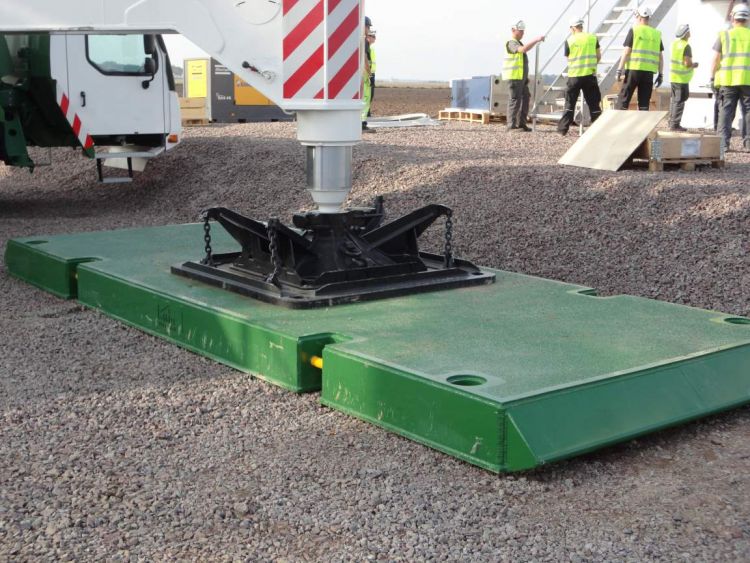

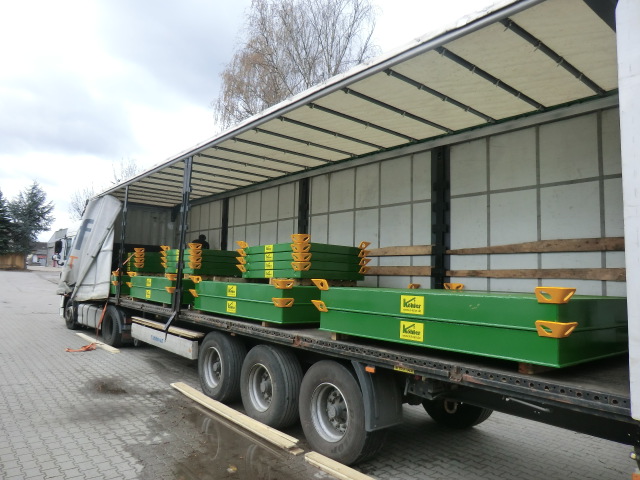

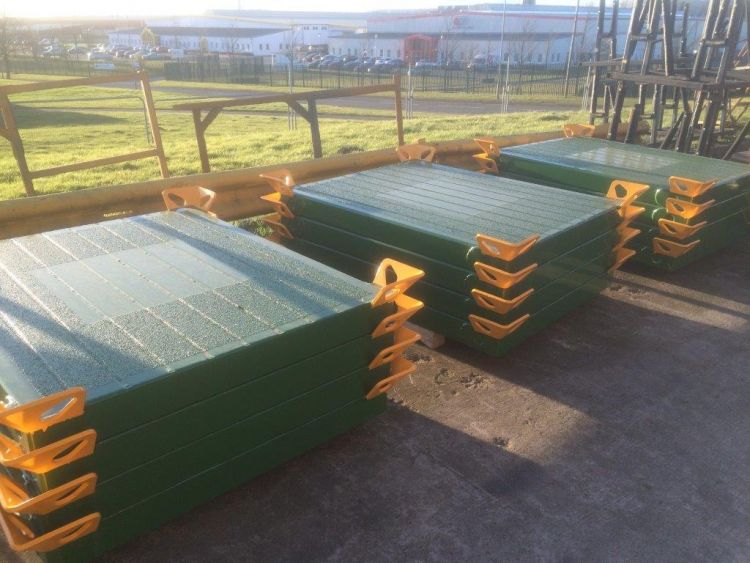

Steel support pads - rental
150 x 120 90 t 140 t per day 65 APS90T
per week 130 APS90W
per month 285 APS90M
250 x 240 180 t 270 t per day 95 APS180T
per week 300 APS180W
per month 820 APS180M
Steel support pads - sale
150 x 120 90 t 140 t 1.880 APS90K
250 x 240 180 t 270 t 5.790 APS180K

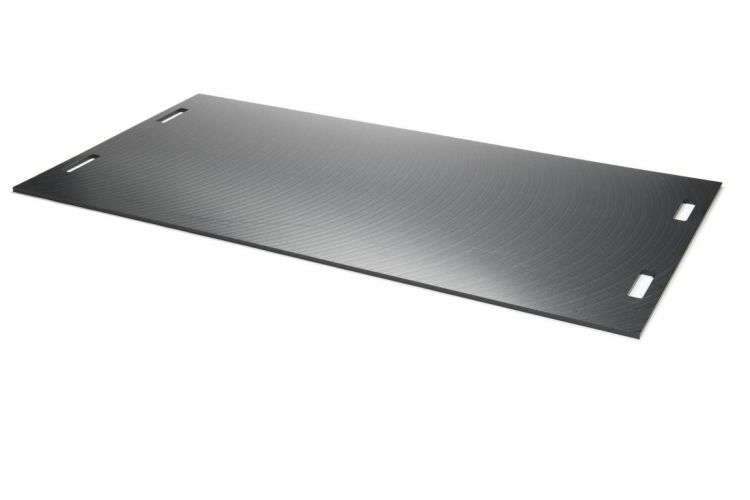

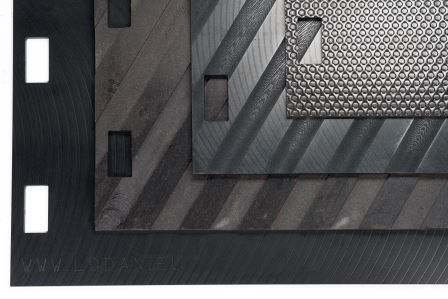

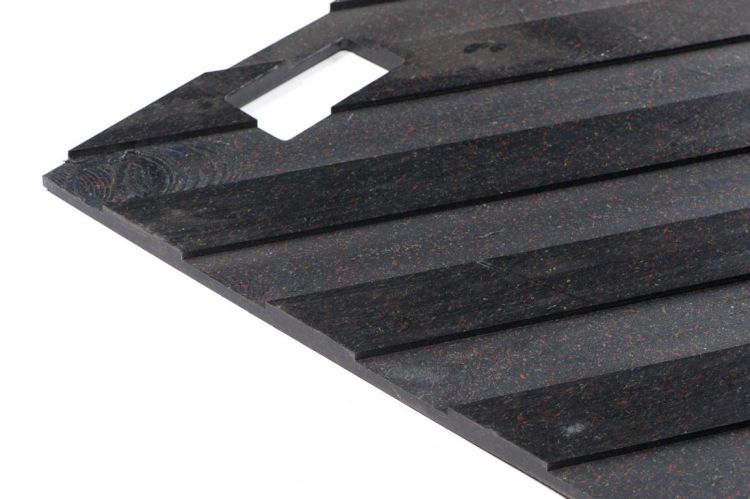

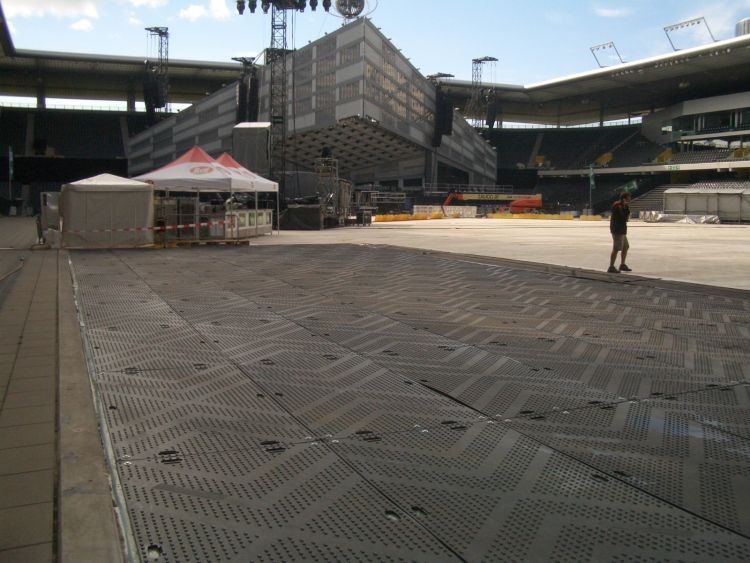

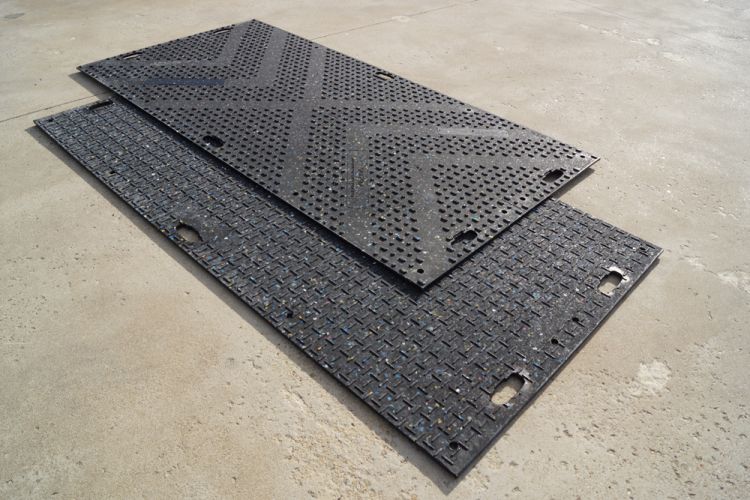

Road plate
200 x 50 x 1,0 5 t 10 kg 66 +8 AP200501
200 x 50 x 1,5 45 t 15 kg 85 +8 AP200501-5
200 x 50 x 2,0 60 t 20 kg 111 +8 AP200502
200 x 100 x 1,0 5 t 20 kg 131 +15 AP2001001
200 x 100 x 1,5 45 t 30 kg 169 +15 AP2001001-5
200 x 100 x 2,0 60 t 40 kg 220 +15 AP2001002
300 x 50 x 1,0 5 t 15 kg 97 +12 AP300501
300 x 50 x 1,5 45 t 22,5 kg 126 +12 AP300501-5
300 x 50 x 2,0 60 t 30 kg 164 +12 AP300502
300 x 100 x 1,0 5 t 30 kg 192 +23 AP3001001
300 x 100 x 1,5 45 t 45 kg 250 +23 AP3001001-5
300 x 100 x 2,0 60 t 60 kg 327 +23 AP3001002

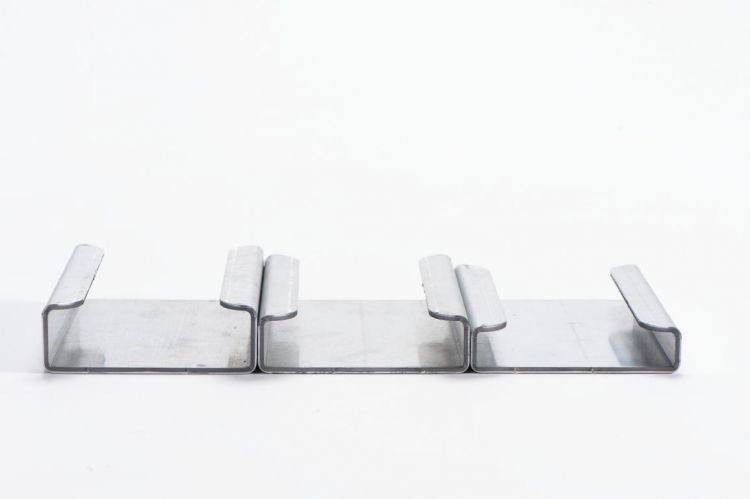

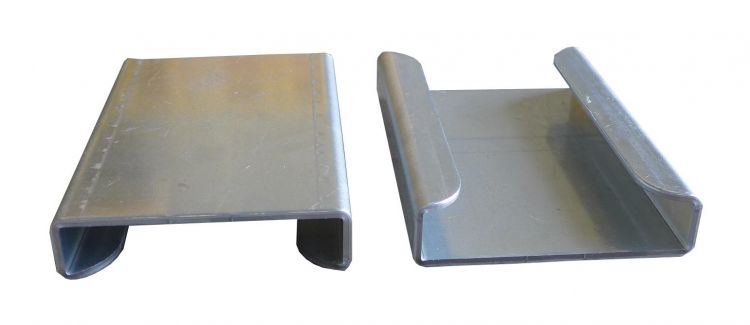

Connector type C 10 mm per piece 4,80 APVC10
Connector type C 15 mm per piece 4,80 APVC15
Connector type C 20 mm per piece 4,80 APVC20
Connector type M only 15 mm per piece 7,40 APVM

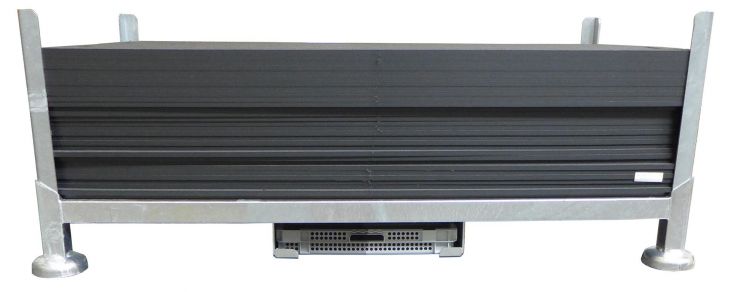

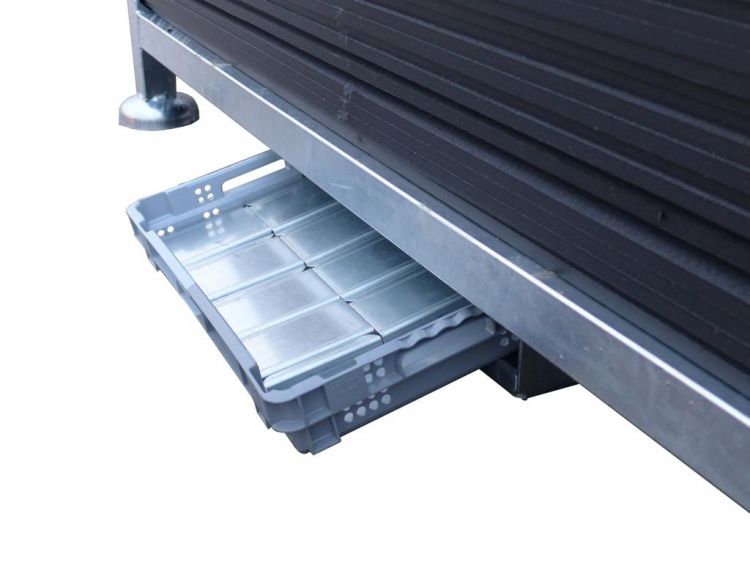

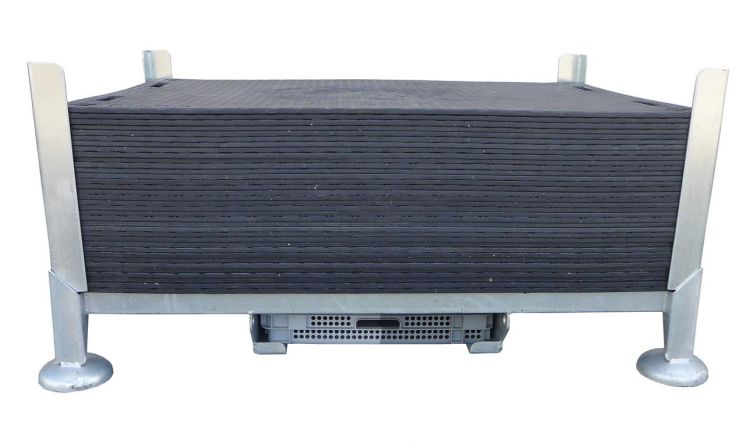

Mats Box for plates 200 incl. accessory box 50 kg 374 APG200
for plates 300 incl. accessory box 60 kg 507 APG300

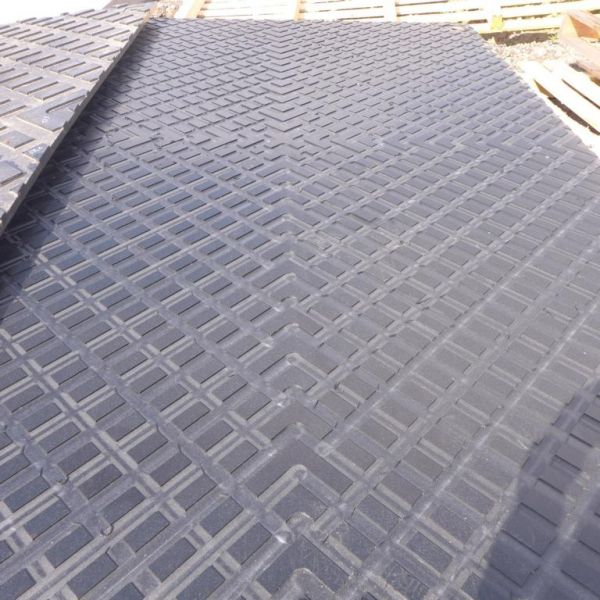

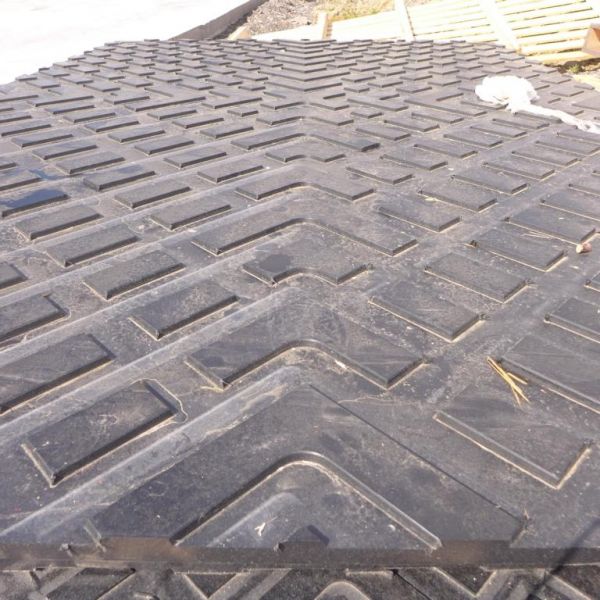

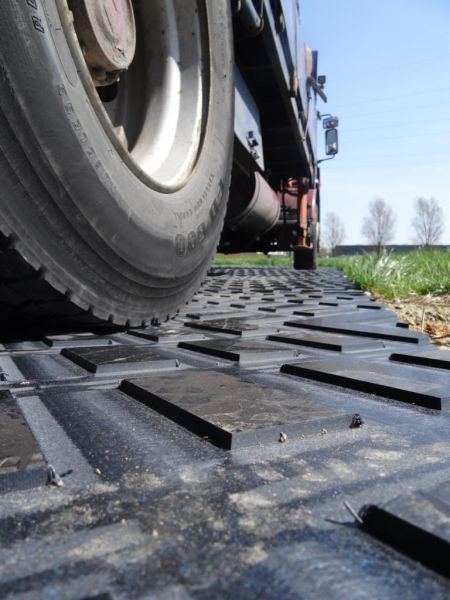

Heavy duty road mat
300 x 200 x 2,5 80 t 130 kg 858 AP3002002-5
300 x 200 x 4 150 t 215 kg 1.220 AP3002004

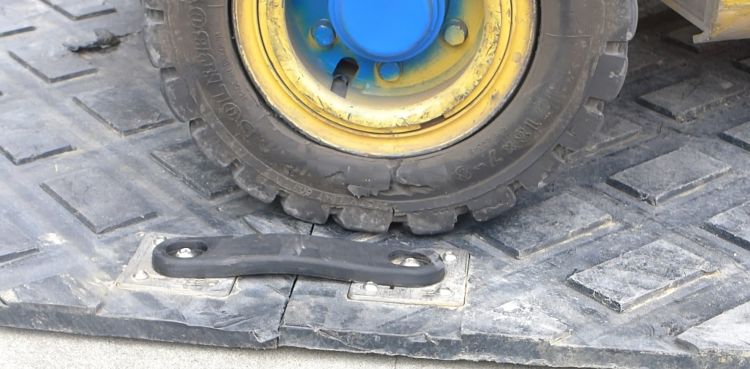

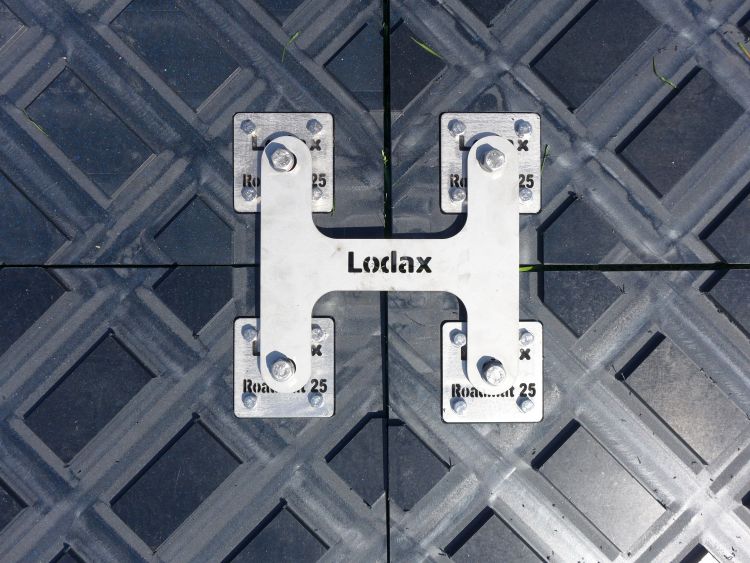

Connectors for 2 mats per piece 11,15 APVSL2
Connector for 4 mats per piece on request APVSL4

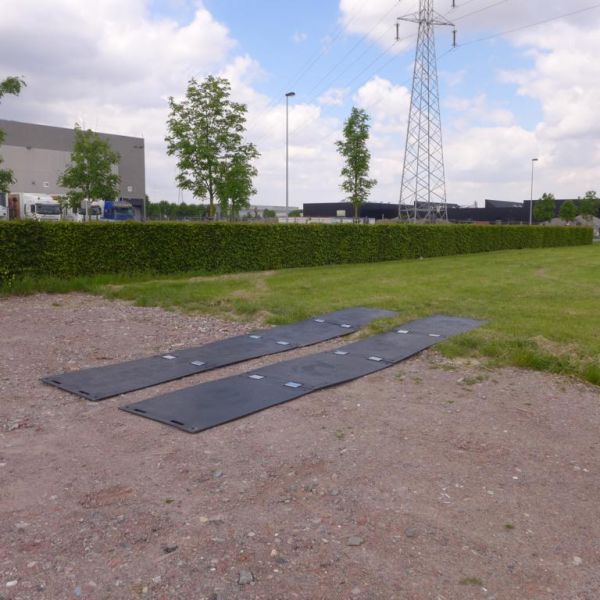

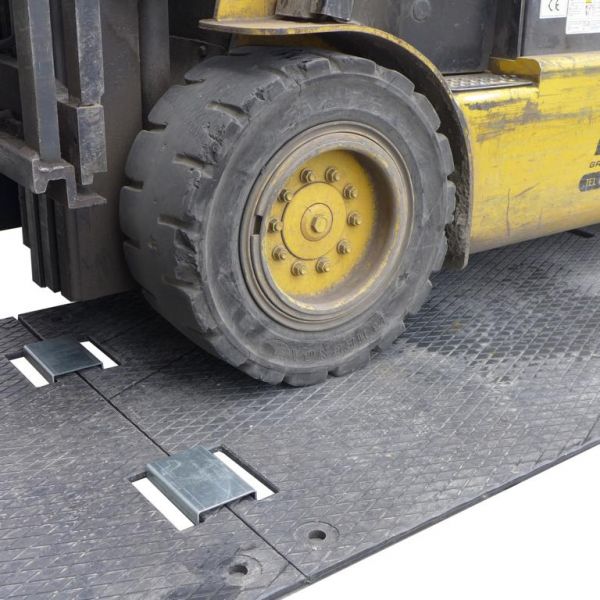

Eco-Mats
150 x 100 x 1,2 10 t 17 kg 55 APE1501001-2
Connector type I for 2 mats per piece 5 APVI2
Connector type I for 4 mats per piece 10,80 APVI4
Box for storage & transport for 40 mats 50 kg on request APETG40

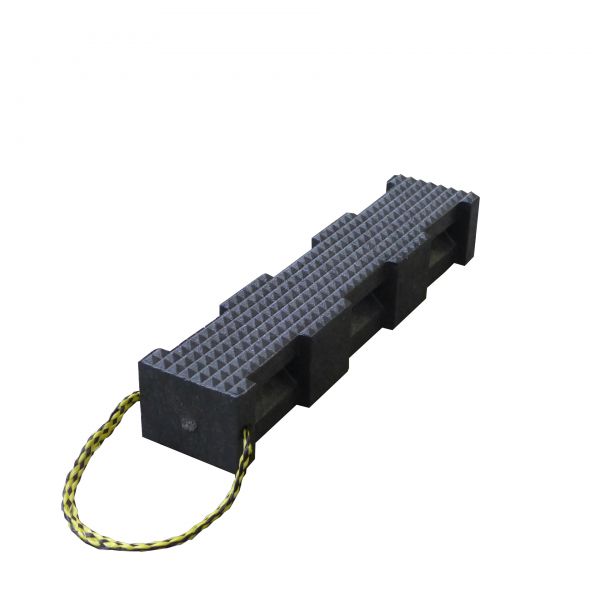

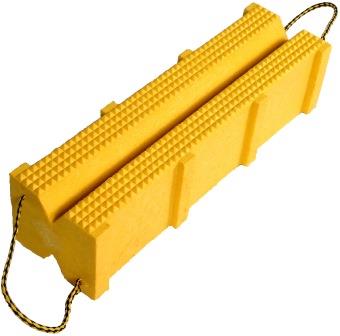

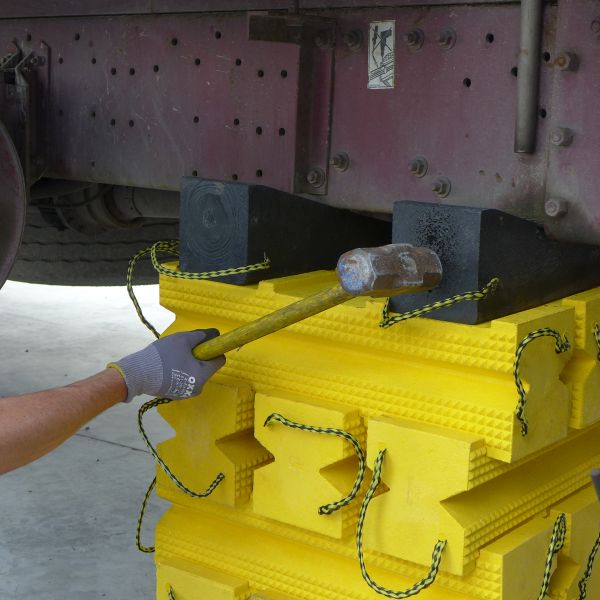

Stability blocs
47,5 x 10,2 x 10,2 black 46 AB475S
47,5 x 10,2 x 10,2 yellow 62 AB475G
61 x 15,2 x 17,8 black 169 AB610S
61 x 15,2 x 17,8 yellow 220 AB610G
Wedge
1-49 x 9 x 9 24 UK490
1-61 x 13 x 14,5 77 UK610

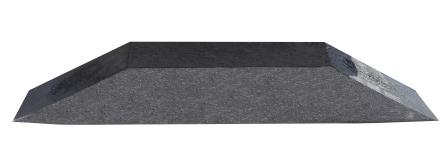

Lifting ramp
91,4 x 44,4 (bottom) / 20,3 (top) x 15,2 180 AR9115
Step block
62,2 x 14,6/9,5 x 27,3 164 AB6227
  Deliver to: Bill to:
Title:
Surname:
Name*:
Street:
Postal code:
City:
Country:
Phonte*:
Telefax:
E-Mail*:
Your message:

After we have processed your order you will receive an order confirmation.
We keep standard plate sizes in stock.
Delivery time in Germany at low stock levels is up to 3-5 weeks. All prices are excl. VAT and transport costs.
